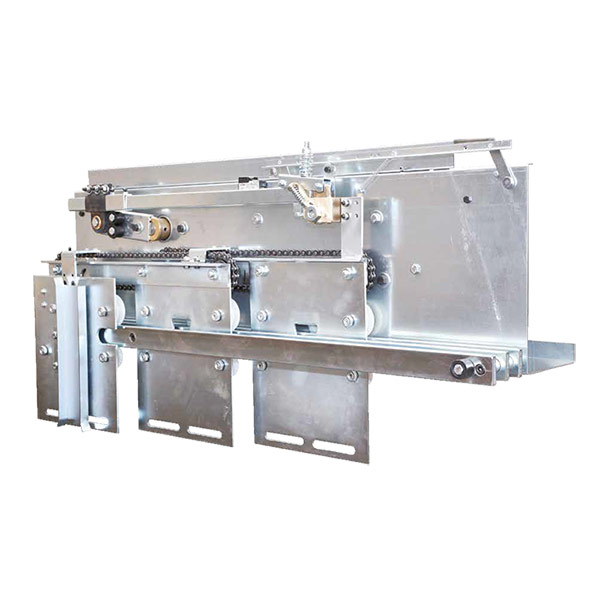

Arm Door Operator OP93 Telescopic 3 panels 3AT

OP93 series are electromechanical arm Door Operators with three-phase motor and microswitches of limit. This operator is still made from many years in large quantities for domestic and international markets. Simple, heavy duty and reliable, it is still highly appreciated for its ease of installation and high reliability. MULE version it is supplied with an Inverter for speed regulation and working with 230Vac single-phase power supply.

Category: Product ID: 7084

Product Description

AUTOMATIC/SEMIAUTOMATIC ARM DOOR OPERATOR WITH 3PHASE ASYNCHRONOUS
MOTOR from 48Vca to 415Vca 50/60Hz, TORQUE 2Nm – 2,5Nm
FIX COUPLER DEVICE
HEAVY DUTY CONSTRUCTION HIGTH RELIABILITY
EASY MAINTENANCE
ALLUMINIUM SILL 120mm
MECHANICAL SAFETY EDGE ADJUSTABLE
MECHANICAL ARM UNLOCK
OPEN/CLOSE MICROSWITCH OF LIMIT
SAFETY EDGE MICROSWICTH

OPTIONALS:
INVERTER SPEED CONTROL APPLICATION single phase power supply 230Vca

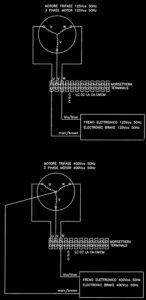

ELECTRONIC BRAKE 125-400Vca 50-60Hz
2SG MECHANICAL RELEASE APPLICATION
HEAVY DUTY ALLUMINIUM SILL 90mm
CARRIAGE OPERATOR MADE ON DESIGN

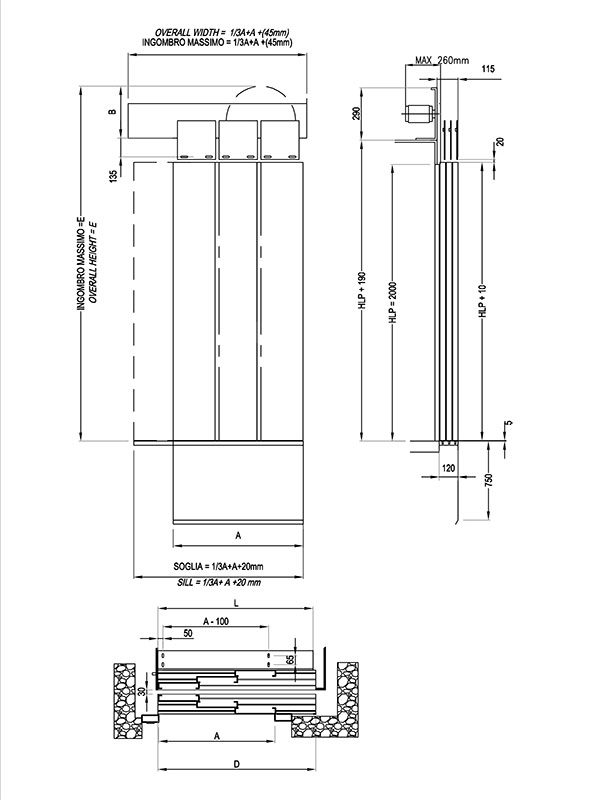

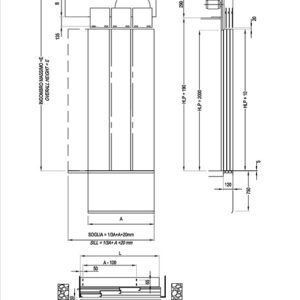

Table

A=[mm] L=[mm] D=[mm] B=[mm] E=[mm]
750 1000 1010 410 2600
800 1070 1075 420 2610
850 1135 1145 425 2615
900 1200 1210 435 2625
950 1270 1275 445 2635
1000 1335 1345 450 2640
1100 1470 1475 465 2655
1200 1600 1610 485 2675
1300 1735 1745 500 2690
1400 1870 1875 520 2710
1500 2000 2010 535 2725
1600 2135 2145 550 2740
1700 2270 2275 570 2760
1800 2400 2410 585 2775

Download PDF

Arm Door Operator OP93 Telescopic 3 panels 3AT

Accessories

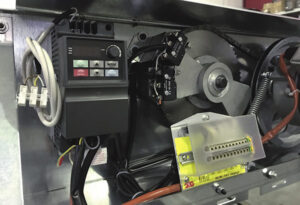

Door Operator OP93 with Inverter for speed control, single phase power supply 230Vca – 0.75Kw

Arm Door Operator with electronic brake
