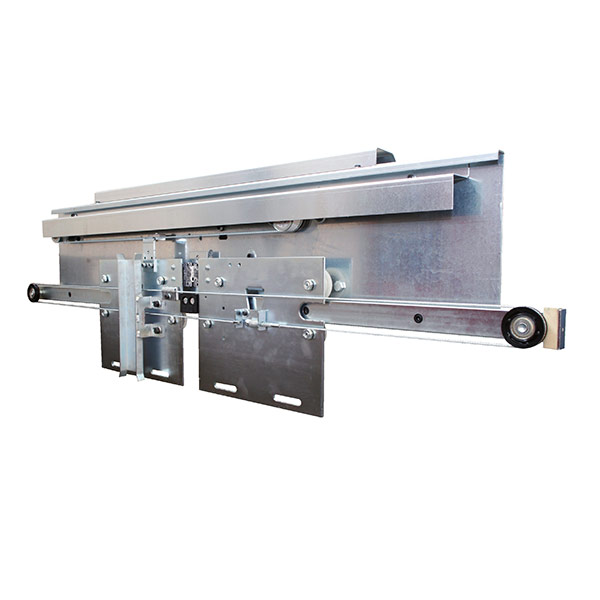

The LIKE series are high performance operators for elevators and hoists with heavy doors, with dimensions greater than 1100mm and high traffic. For elevators in hotel or prestige facilities, where quality, speed and robustness are required. A smartphone application will soon be available for the complete adjustment of the door without the need to work above the cabin. Compliant with the EN81-20 / 50 directive.

Category: Product ID: 7078

Product Description

SEMI/AUTOMATIC DOOR OPERATOR SINGLE PHASE MAIN SUPPLY 230Vca 50/60Hz or 24Vdc
INTERCHANGEABLE WITH ALL 2SG DOOR OPERATORS
FIX COUPLER DEVICE
HEAVY DUTY CONSTRUCTION, HIGHT PERFORMANCE

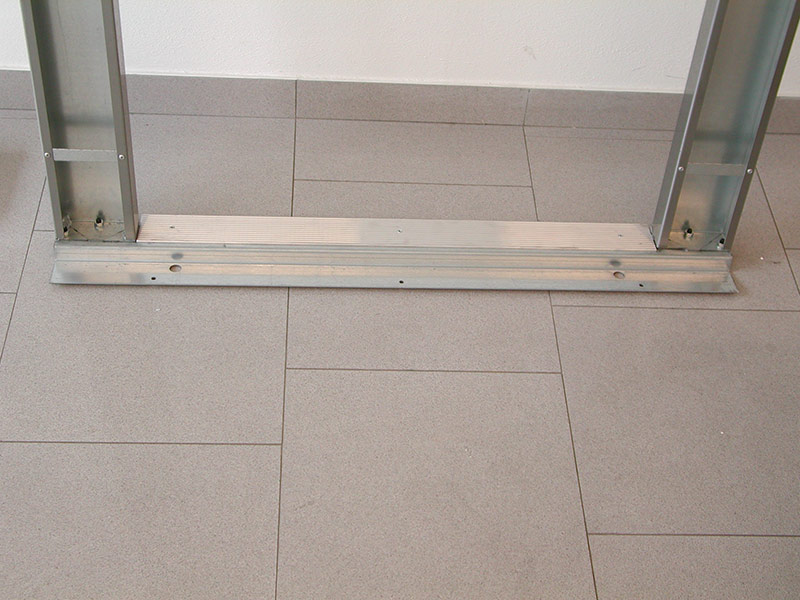

ALLUMINIUM SILL 50-70mm
PROGRAMMABLE BY EXTERNAL KEY PAD
ELECTRONIC 2SG BRUSHLESS MOTOR DRIVER WITH ENCODER
COMPLETE CURRENT AND MOTOR CONTROL
AUTOTUNING OF DOOR DIMENSION
DIAGNOSTIC AND DRIVER TEST SOFTWARE
INPUT CURTAIN’S FAULT FOR CLOSING TO LOW SPEED
INPUT SINGLE OR DOUBLE SIGNALS FOR DOOR’S COMMAND
OUTPUT SIGNALS: OPEN/CLOSE LIMITS, SAFETY EDGE, BY PASS
ON BOARD BATTERY CHARGER FOR EMERGENCY RE-OPENING DOOR
READY FOR BLUETOOTH APP “2SG CONNECT”

OPTIONALS:
“2SG CONNECT” DOOR CONTROL SMARTPHONE APPLICATION
CABIN BLOCK DEVICE IN COMPLIANCE WITH EN81-20/50 DIRECTIVE
CONTROL POSITION EMERGENCY UNLOCK ZONE
2SG MECHANICAL RELEASE APPLICATION
ADAPTABLE ON LOW-HEAD ROOM LIFT (2365mm)
HEIGTH CARRIAGE AND FIXING HOLES FOR PANELT TO DESIGN
BATTERY PACK 24Vdc 5,2Ah
