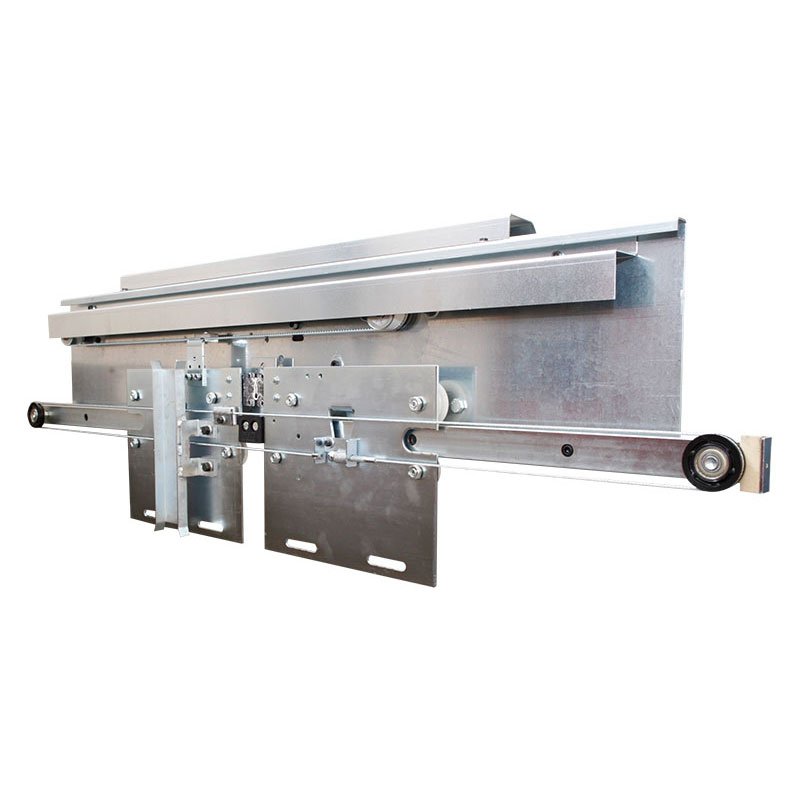

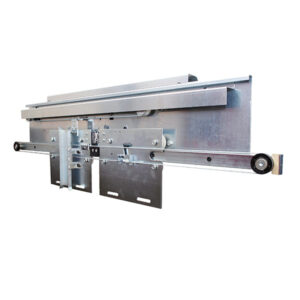

FLY Door Operator Central 2 panels 2AO
The FLY series are compact, lightweight operators that are easy to assemble and adjust. Fully programmable suitable for installation on lifts and platforms. Suitable for mounting on low 2365mm heads. Compliant with the EN81-20 / 50 directive.
Product Description
SEMI/AUTOMATIC DOOR OPERATOR SINGLE PHASE MAIN SUPPLY 230Vca 50/60Hz or 24Vdc
INTERCHANGEABLE WITH ALL 2SG DOOR OPERATORS
FIX COUPLER DEVICE
LIGTHWEIGTH AND SMALL DIMENSION
ALLUMINIUM SILL 50-70mm
PROGRAMMABLE BY EXTERNAL KEY PAD

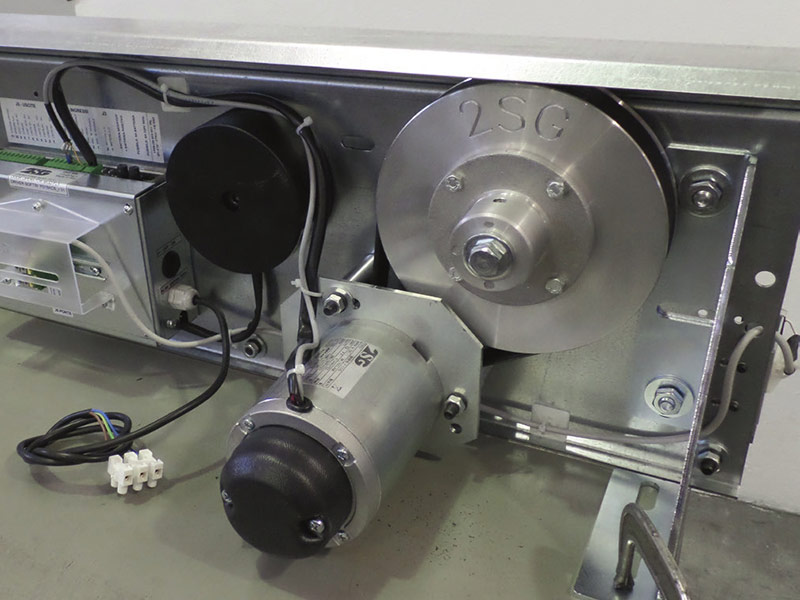

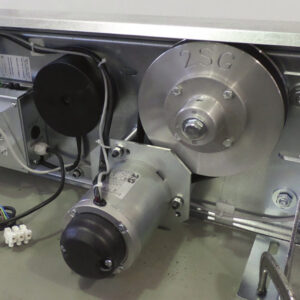

ELECTRONIC 2SG PWM MOTOR’S DRIVER 200W DC WITH ENCODER
CURRENT AND MOTOR TORQUE PROGRAMMABLE
AUTOTUNING OF DOOR DIMENSION
DIAGNOSTIC AND DRIVER TEST SOFTWARE
SINGLE OR DOUBLE SIGNALS FOR DOOR’S COMMAND
OUTPUT SIGNALS: OPEN/CLOSE LIMITS, SAFETY EDGE
ON BOARD BATTERY CHARGER FOR EMERGENCY RE-OPENING DOOR
BATTERY PACK 24Vdc 2,3Ah
OPTIONALS:
CABIN BLOCK DEVICE IN COMPLIANCE WITH EN81-20/50 DIRECTIVE
CONTROL POSITION EMERGENCY UNLOCK ZONE
2SG MECHANICAL RELEASE APPLICATION
ADAPTABLE ON LOW-HEAD ROOM LIFT (2365mm)
HEIGTH CARRIAGE AND FIXING HOLES FOR PANELT TO DESIGN

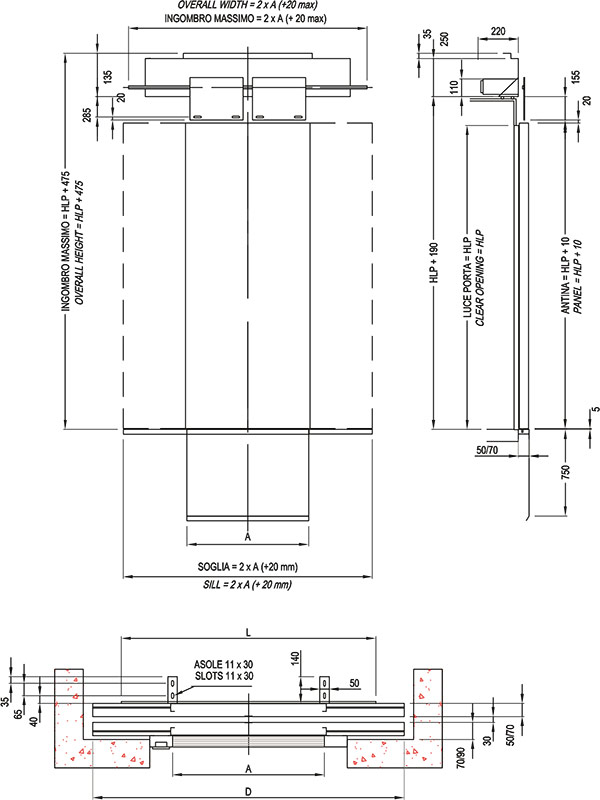

Table
| A=[mm] | L=[mm] | D=[mm] |
| 600 | 1100 | 1220 |
| 650 | 1100 | 1320 |
| 700 | 1250 | 1420 |
| 750 | 1250 | 1520 |
| 800 | 1500 | 1620 |
| 850 | 1500 | 1720 |
| 900 | 1500 | 1820 |
| 950 | 1500 | 1920 |
| 1000 | 2000 | 2020 |
