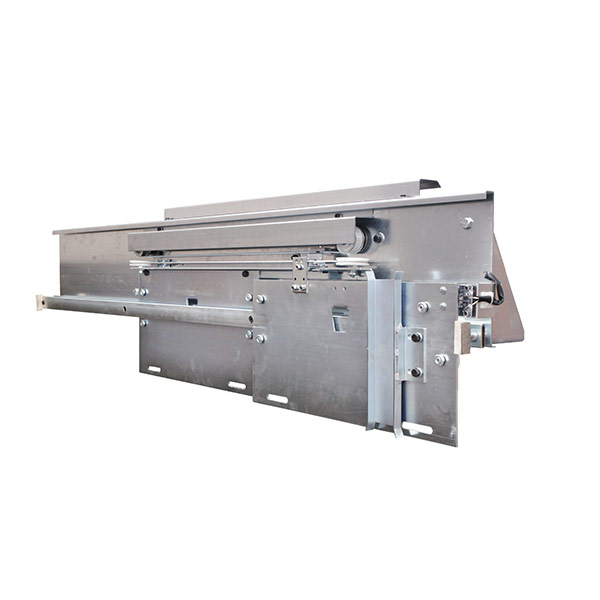

LIKE Door Operator 2 panels telescopic 2AT

The LIKE series are high performance operators for elevators and hoists with heavy doors, with dimensions greater than 1100mm and high traffic. For elevators in hotel or prestige facilities, where quality, speed and robustness are required. A smartphone application will soon be available for the complete adjustment of the door without the need to work above the cabin. Compliant with the EN81-20 / 50 directive.

Category:

Request a Quote

Description

SEMI/AUTOMATIC DOOR OPERATOR SINGLE PHASE MAIN SUPPLY 230Vca 50/60Hz or 24Vdc
INTERCHANGEABLE WITH ALL 2SG DOOR OPERATORS
FIX COUPLER DEVICE
HEAVY DUTY CONSTRUCTION, HIGHT PERFORMANCE
ALLUMINIUM SILL 75-90mm
PROGRAMMABLE BY EXTERNAL KEY PAD
ELECTRONIC 2SG BRUSHLESS MOTOR DRIVER WITH ENCODER
COMPLETE CURRENT AND MOTOR CONTROL
AUTOTUNING OF DOOR DIMENSION
DIAGNOSTIC AND DRIVER TEST SOFTWARE
INPUT CURTAINS FAULT FOR CLOSING TO LOW SPEED
INPUT SINGLE OR DOUBLE SIGNALS FOR DOORS COMMAND
OUTPUT SIGNALS: OPEN/CLOSE LIMITS, SAFETY EDGE, BY PASS
ON BOARD BATTERY CHARGER FOR EMERGENCY RE-OPENING DOOR
READY FOR BLUETOOTH APP 2SG CONNECT



OPTIONALS:
2SG CONNECT DOOR CONTROL SMARTPHONE APPLICATION
CABIN BLOCK DEVICE IN COMPLIANCE WITH EN81-20/50 DIRECTIVE
CONTROL POSITION EMERGENCY UNLOCK ZONE
2SG MECHANICAL RELEASE APPLICATION
ADAPTABLE ON LOW-HEAD ROOM LIFT (2365mm)
HEIGTH CARRIAGE AND FIXING HOLES FOR PANELT TO DESIGN
BATTERY PACK 24Vdc 5,2Ah
HEAVY DUTY ALLUMINIUM SILL 90mm

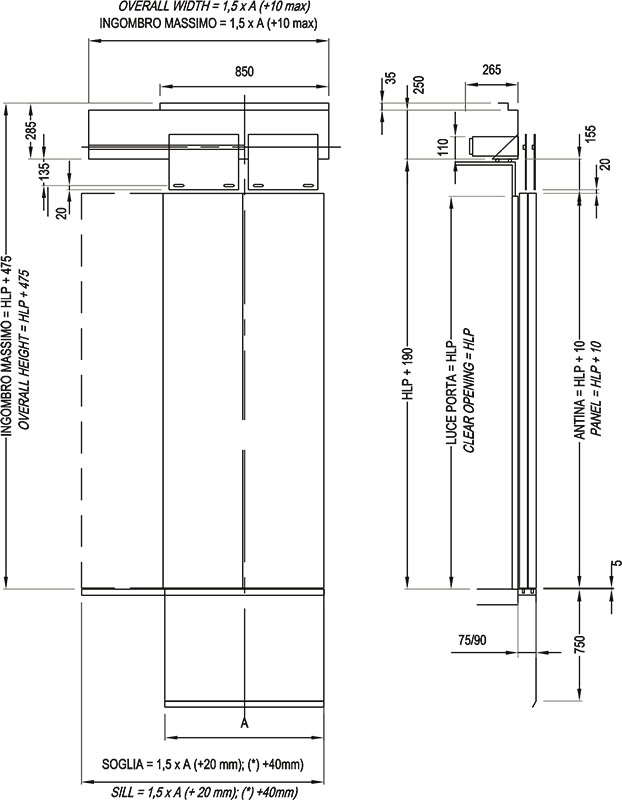

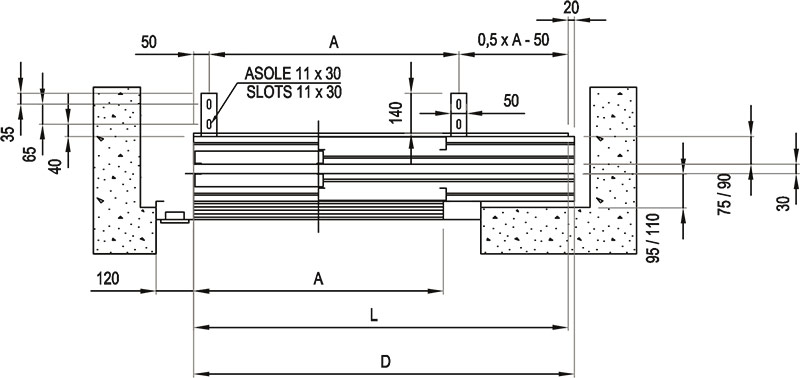

A=[mm] L=[mm] D=[mm]
600 900 940
650 975 1015
700 1050 1090
750 1125 1165
800 1200 1240
850 1270 1315
900 1350 1390
950 1425 1465
1000 1500 1540
1100 1650 1690
1200 1800 1840
1300 1950 1990
1400 2100 2140
1500 2250 2290
1600 2400 2440
1700 2550 2590
1800 2700 2740
