FLY-3AT
0201

The FLY series are compact, lightweight operators that are easy to assemble and adjust. Fully programmable suitable for installation on lifts and platforms. This operator is particularly indicated where it is necessary to increase the door dimension in reduced spaces. Suitable for renovations on both elevators and platforms. Compliant with the EN81-20 / 50 directive.

Category: Product ID: 7076

Product Description

SEMI/AUTOMATIC DOOR OPERATOR SINGLE PHASE MAIN SUPPLY 230Vca 50/60Hz or 24Vdc
INTERCHANGEABLE WITH ALL 2SG DOOR OPERATORS
FIX COUPLER DEVICE
LIGTHWEIGTH AND SMALL DIMENSION
ALLUMINIUM SILL 120mm
PROGRAMMABLE BY EXTERNAL KEY PAD
ELECTRONIC 2SG PWM MOTOR’S DRIVER 200W DC WITH ENCODER
CURRENT AND MOTOR TORQUE PROGRAMMABLE
AUTOTUNING OF DOOR DIMENSION
DIAGNOSTIC AND DRIVER TEST SOFTWARE
SINGLE OR DOUBLE SIGNALS FOR DOOR’S COMMAND
OUTPUT SIGNALS: OPEN/CLOSE LIMITS, SAFETY EDGE
ON BOARD BATTERY CHARGER FOR EMERGENCY RE-OPENING DOOR
BATTERY PACK 24Vdc 2,3Ah

OPTIONALS:
CABIN BLOCK DEVICE IN COMPLIANCE WITH EN81-20/50 DIRECTIVE
CONTROL POSITION EMERGENCY UNLOCK ZONE
2SG MECHANICAL RELEASE APPLICATION
ADAPTABLE ON LOW-HEAD ROOM LIFT (2405-2420mm)
HEIGTH CARRIAGE AND FIXING HOLES FOR PANELT TO DESIGN

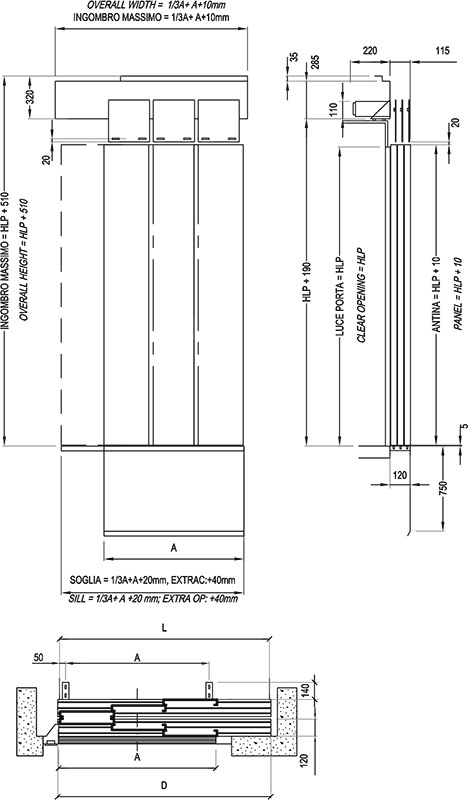

Table

A=[mm] L=[mm] D=[mm]
750 1000 1020
800 1070 1090
850 1135 1155
900 1200 1220
950 1270 1290
1000 1335 1355

Download PDF

FLY Door Operator Telescopic 3 panels 3AT
