Central landing mechanism 4 panels 4AT I92
The 2SG landing mechanism are compatible with all our operators’ series. Of sturdy construction and high reliability, they are suitable for all types of doors, be they large platforms or lifts. Easy to install and maintain with complete accessories for both frame and wall mounting. Compliant with the EN81-20 / 50 directive.
Product Description
COMPATIBLE WITH ALL 2SG DOORS OPERATOR
FIX COUPLER DEVICE
HEAVY DUTY CONSTRUCTION, HIGTH PERFORMANCE
ALLUMINIUM SILL 75-90mm
EASY INTALLATION AND COUPLING ADJUSTING
MOUNTING ON FRAME OR WALL
CLOSING SPRING FOR SECURE CLOSING SYATEM
ACCESSORIES INCLUDE: SILL BRACKETS, TOE GUARD, EMERGENCY KEY SET,PANEL BOLTS AND BOTTOM SHOES, SPRING,
ALL SCREWS AND ACCESSORIES FOR FRAME AND WALL FIXING
OPTIONS:
MADE IN COMPLIANCE WITH EN81-20/50 DIRECTIVE
HEAVY DUTY ALLUMINIUM SILL 90mm

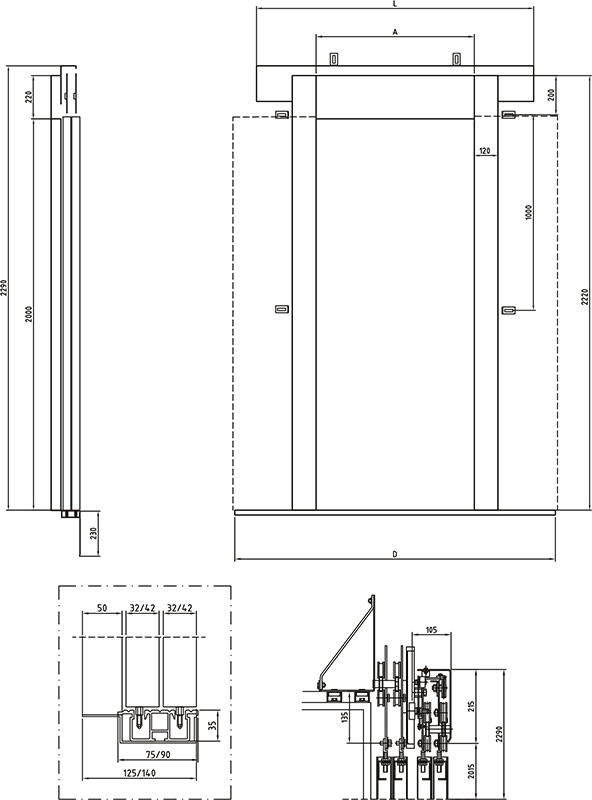

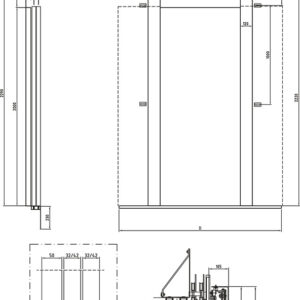

Table
| Door opening A=[mm] | Maximun height=[mm] |
| 600 – 1500 | 2000 |
| 1600 – 2300 | 2200 |
| 2400 – 4000 | 3000 |
